Dynamic Programming Part 1: Basic Memoization

We are going to learn two concepts over the course of this series:

  1. Memoization

  2. Tabulation

So let's start with the basics.

Fibonacci Series:

Write a function fib(n) that takes in a number as an argument. The function should return the nth number of the Fibonacci sequence.

Let's look at the series:

n:     1,2,3,4,5,6,7,8
fib(n): 1,12,3,5,8,13,21

Fib using Basic Recursion

Alright so let's look at the basic Fibonacci series. We are going to implement it in a basic recursive function:

def fibonacci_recur(n):
    if n <= 2:
        return 1
    return fibonacci_recur(n-1) + fibonacci_recur(n-2)

The problem is that let's say if we want to call fibonacci_recur(50) you'll see that the program executes for a while. In fact we can even time the program and see how long it is taking to execute.

Let's draw our the Fibonacci Tree:

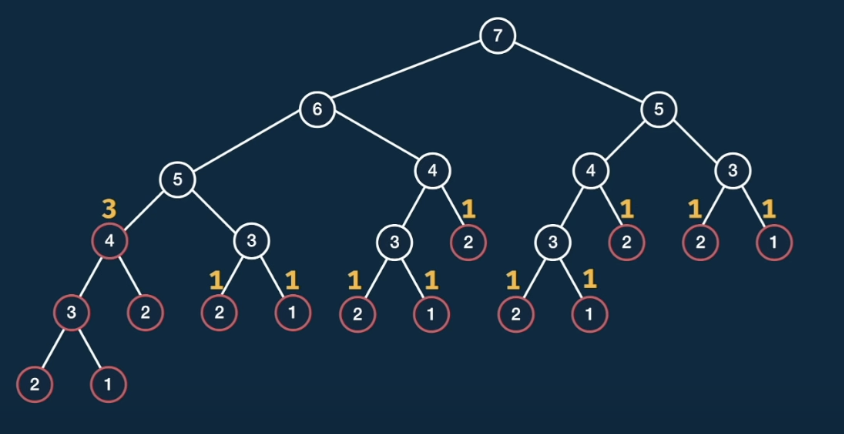

So when we see the tree for 7. This is what we get:

So for all of the base cases we know that they are going to return 1.

And remember: The time complexity of Fibonacci recursion is O( 2^n )

Let's look another basic algorithm. That really doesn't do anything but we want to calculate the number of calls and find out it's time complexity.

def dib(n):
    if n <= 1:
        return
    dib(n-1)
    dib(n-1)

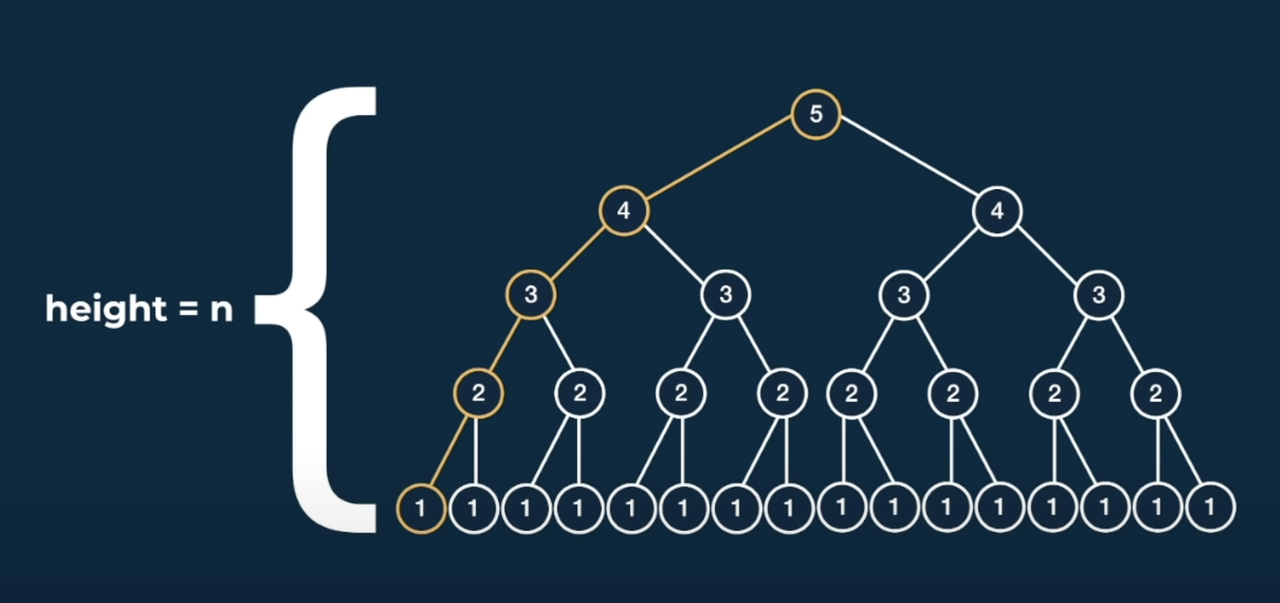

Now if we call dib(5) this is going to be the tree:

So the total number of levels = 4. Starting with 0 Level at the top. So now we know that the program's time complexity is again O( 2^n ). But the space complexity of the above program is O(n)

Now if we look at fib(50) we have to make 2^50 calls which is a quadrillion. Clearly we need a better way.

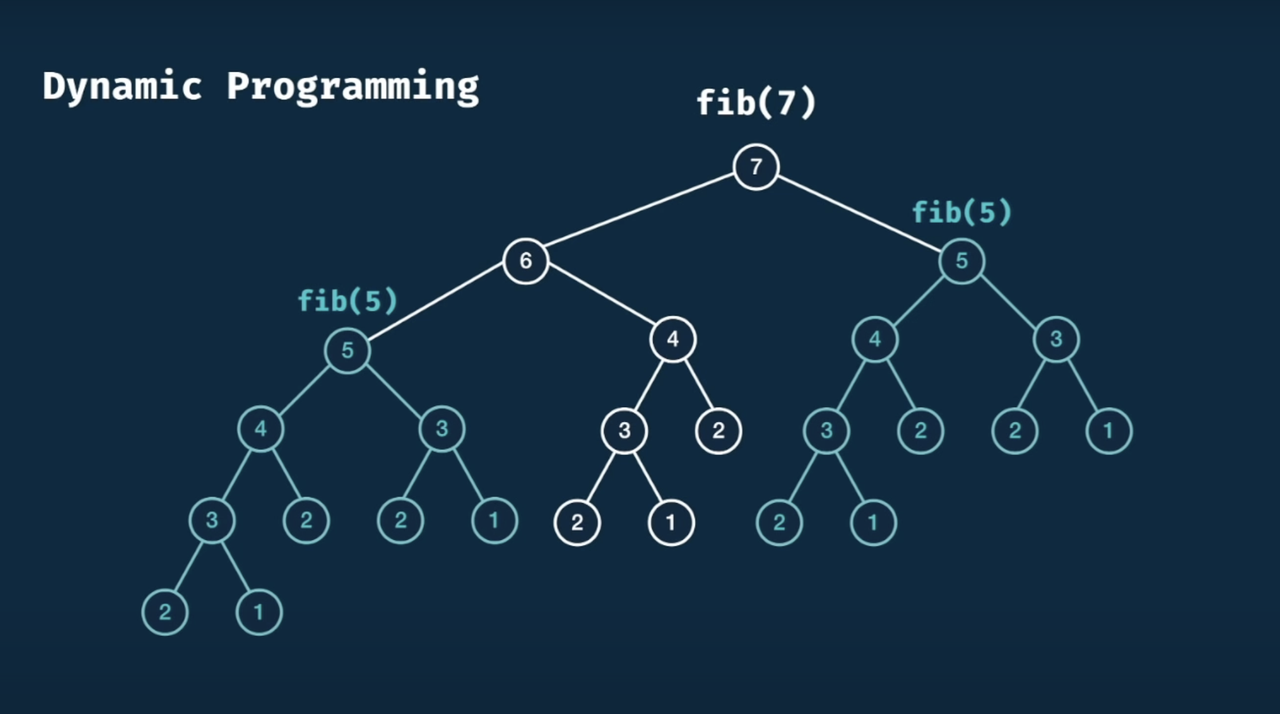

Now if we look back again at the tree for fib(7) we get the following:

We see that a lot of calculations are being repeated. So we don't need to do them twice, we'll have to device a way to store the calculation for instance fib(5) and store the value and get it from there for future calculations. This is called Dynamic Programming.

Fibonacci using Memoization

Since we want to store the values. The trick is to use Memoization.

In order to implement Memoization we need a fast data structure preferably one with O(1) access time. So let's use Dictionary in python.

# Memoization
# Using Dictionary, Keys will be arg to the fn, value will be the retun value
def fib(n, memo = {}):
    # First we check if the value is in the dict
    if n in memo:
        return memo[n]
    # This is the base case
    if n <= 2:
        return 1
    # Since we'll have to calculate at least once. We are going to store the value in our dict
    memo[n] = fib(n - 1, memo) + fib(n - 2, memo)
    # Finally we return our value through dict
    return memo[n]

If we run the program now we can see that this is going to be Blazingly fast. As this won't take long.

So this is going to be an ongoing series in my journey of dynamic programming.
You can find the repo here: https://github.com/khkred/dp_algorithms

It also has my notes under the notes/ folder. Happy Programming!!!
